Does this drawing show pier depth?

No. It's a plan view of pier locations and spacing. Record install depth and load for each pier in ArcSite once the crew drives them.

Can I switch to helical piers?

Yes! Swap the push pier symbols for helical piers in ArcSite, or mix both on the same plan.

Will my proposal look professional next to bigger companies?

Absolutely. Your logo, photos, and pier plan go on every page, so a two-truck crew can hand over a proposal that looks like it came from a company ten times its size.

Push Pier Foundation Repair Shop Drawing

Template Library

Solid footing means doors that close, floors that stay level, and a homeowner who stops worrying about the next crack. Every pier around a house with a garage, crawl space, and existing fireplace shows up on ArcSite's push pier foundation repair shop drawing.

Customize & Download

Opens right in your browser — no install. Make it yours within minutes.

Browse Related Templates

Key Features

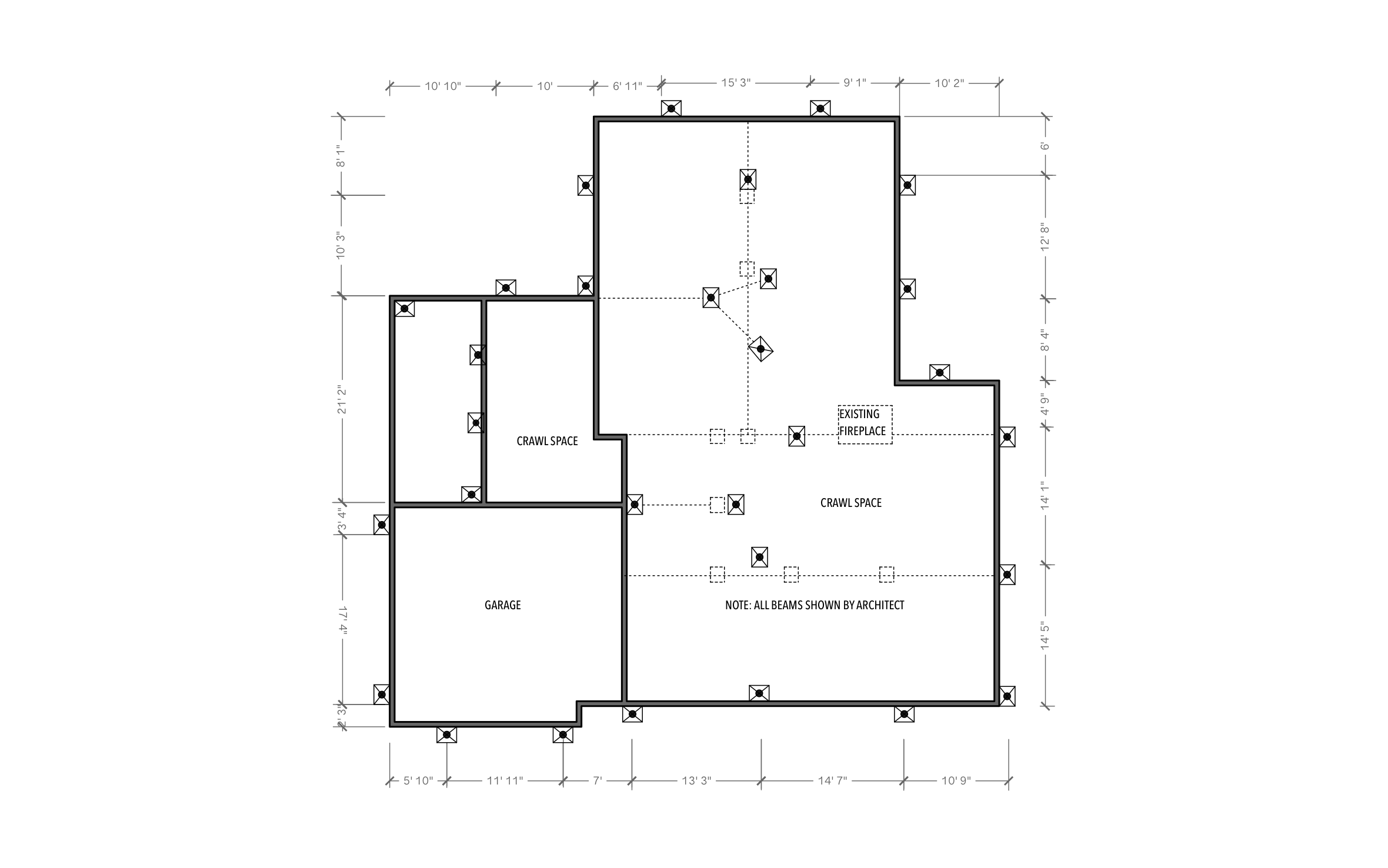

This push pier foundation repair shop drawing includes:

Piers placed along the full exterior perimeter
Interior piers on the beam lines through the crawl space
Garage and two crawl space areas
Existing fireplace marked inside the footprint
Dimension strings on all four sides
Note that the architect shows all beams

The existing fireplace sits right on an interior beam line, so the drawing places a pier beside it instead of under it.

Accurate to scale

Industry specific

Ready made to share or export

Design tips

What is a Push Pier Foundation Repair Shop Drawing?

Customize & Download

Push pier shop drawings are plan views crews install from, showing each pier's location and spacing. Measure on site, drop in your pier products, and leave with a signed ArcSite proposal.
