Projector Screen CAD Block
Projector screen CAD block free in DWG, DXF, and PNG. Shows the screen hanging from its mounting bar in front view.
Key Features
ArcSite's Projector Screen CAD Block

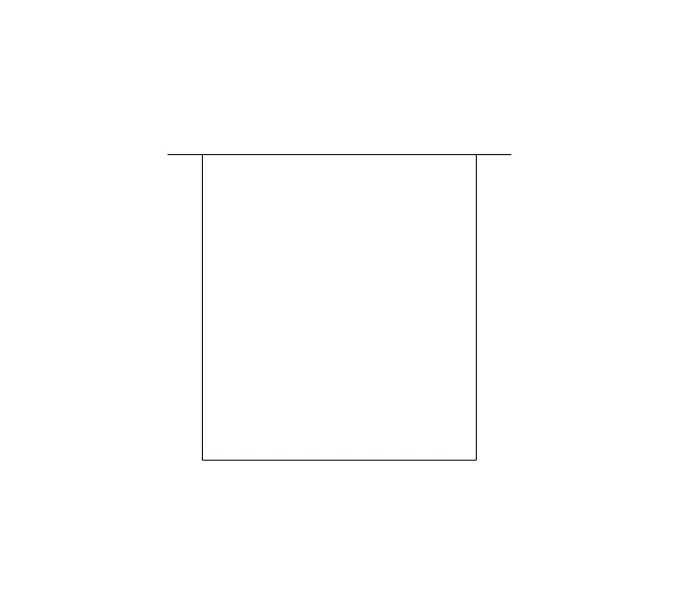

- Front View Screen: The screen hangs from a top mounting bar, the way it looks on a wall elevation.
- Resize to Fit: Stretch it to match the screen width you're specifying.
- Meeting Room Planning: Place it on conference room and classroom elevations to set screen height.
- AV Layout Fit: Combine it with computer and projector placement to plan the room's AV setup.
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Trusted by the Pros. Honored for Innovation.
Based on 21,000+ reviews from
Security, AV & Technology
CAD blocks you might like
Unlock 1,200+ free CAD blocks with ArcSite
Drag and drop from thousands of preloaded shapes, edit blocks on-site, and generate instant estimates and takeoffs.
FAQs
What view does it show?
Front view, with the screen hanging below its mounting bar.
Can I use it to set screen height on a wall?
Yes, place it on the wall elevation and measure from the floor to the bottom of the screen.
What formats is it available in?
DWG, DXF, and PNG.
