Does this diagram show the manifold?

No. It shows the supply and return points at each room's doorway. Add the manifold and its run to each loop in ArcSite.

Can I change the tubing spacing?

Yes! Tighten or widen the loop spacing in ArcSite to fit each room's heat loss.

Can my office see the layout before I get back?

Yes. Sync means office staff can open your layout while you're still parked in the driveway.

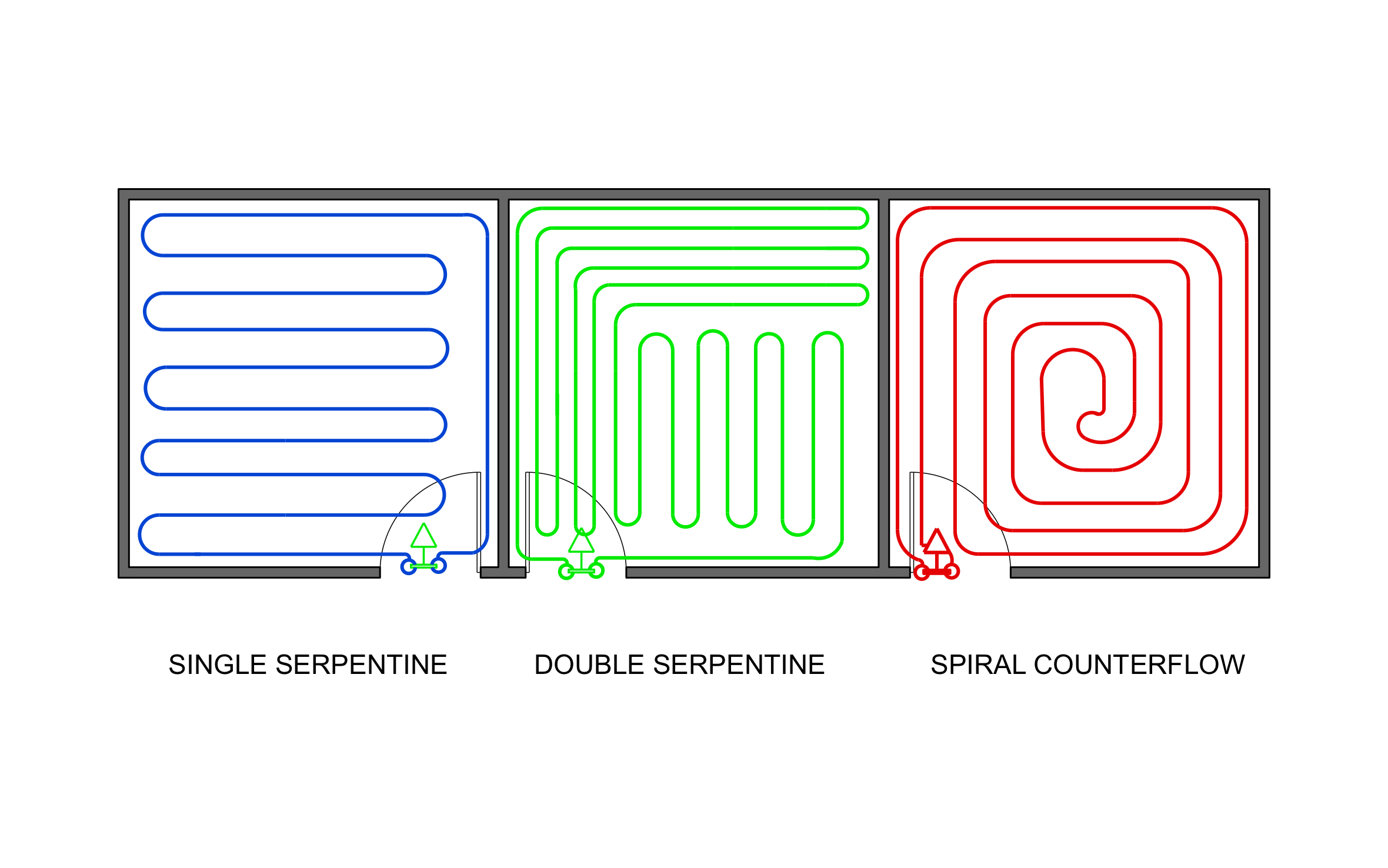

Radiant Floor Heating Diagram

Heat rising from the floor keeps bare feet comfortable on bathroom tile or a basement slab on January mornings. Compare three tubing patterns in matching rooms using ArcSite's radiant floor heating diagram.

Customize & Download

Opens right in your browser — no install. Make it yours within minutes.

Browse Related Templates

Key Features

This radiant floor heating diagram includes:

Single serpentine loop in the first room
Double serpentine loop in the second room
Spiral counterflow loop in the third room
Supply and return connections at each doorway
Color-coded tubing for each pattern
Matching room sizes for a side-by-side comparison

In the spiral counterflow room, supply and return tubing run next to each other the whole way, so hot and cooler water sit side by side and the floor warms more evenly.

Fully customizable

Industry specific

Professional & accurate designs

Design tips

Key Considerations When Designing Radiant Floor Heating

Customize & Download

Tubing pattern decides where the warmest water lands first, which changes how evenly a floor heats. Try each pattern on your customer's actual rooms in ArcSite before ordering any PEX.
