Aluminum Fence Shop Drawing
An aluminum fence gives a pool, a front yard, or a patio a clean, open look that won't rust or need paint. ArcSite's aluminum fence shop drawing puts every panel dimension in front of you before you place the order.
Free access to over 1,200 shapes and blocks included with the ArcSite CAD app
Key Features

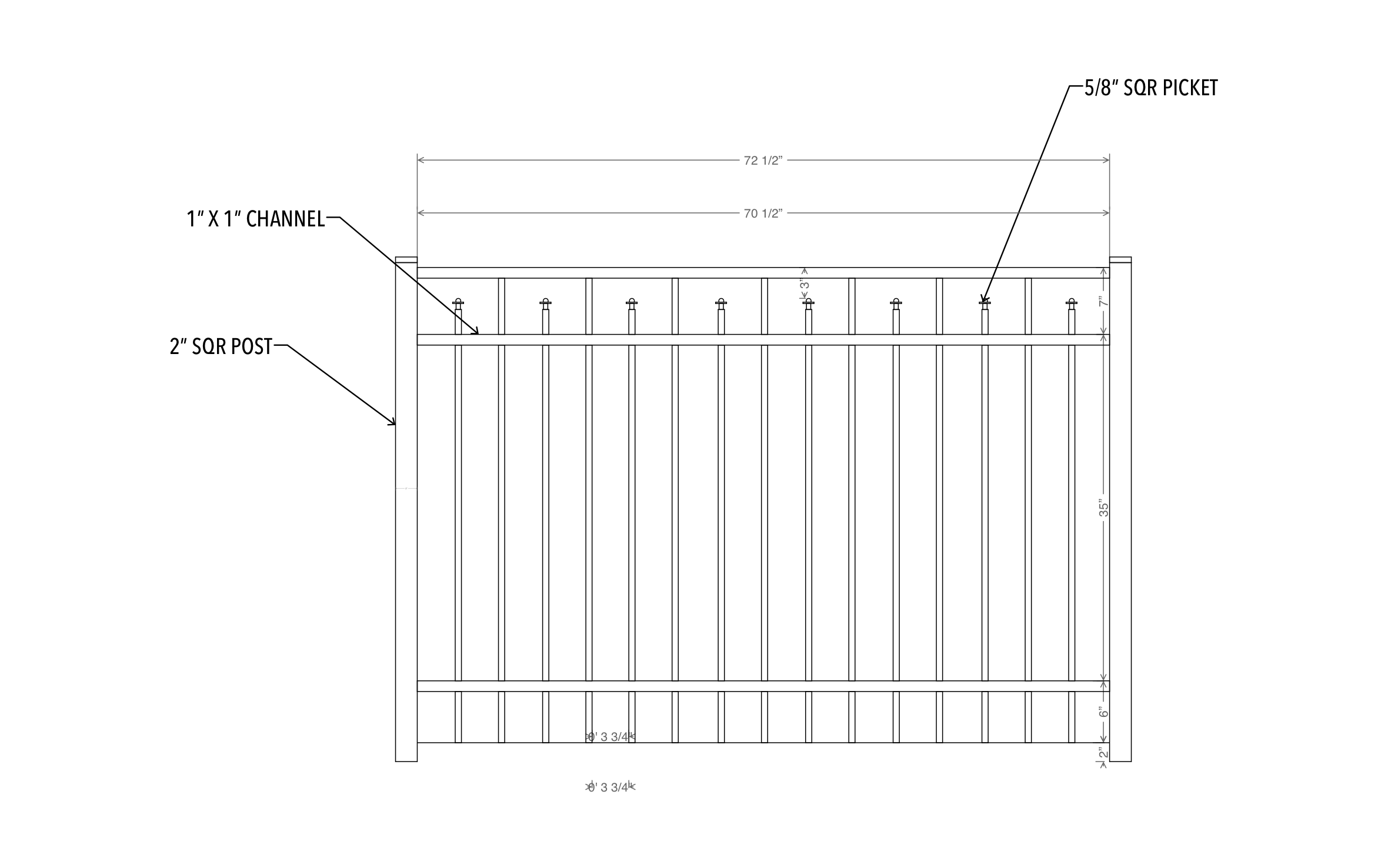

This aluminum fence shop drawing includes:
- 2" square posts
- 5/8" square pickets
- 1" x 1" channel rails
- Finial tops on alternating pickets
- 72-1/2" and 70-1/2" width dimensions across the panel
- 35" between the middle and lower rails
- 3-3/4" picket spacing and 2" ground clearance
The 3-3/4" picket gap sits under the 4" opening many pool barrier codes allow, worth confirming with your local inspector before you sell it as a pool fence.
Trusted by the Pros. Honored for Innovation.
Key Considerations When Designing an Aluminum Fence
Picket spacing and ground clearance decide most aluminum fence jobs, since both control what can slip through or under. ArcSite lets you adjust both on this drawing so your plan matches the panel you actually order.
Landscaping & Outdoor Living
templates you might like
FAQ
It uses 2" square posts and 5/8" square pickets, with 1" x 1" channel for the rails.
Absolutely. You can stretch the panel and move the rails in ArcSite to hit the height your job calls for.
Yes! You can try ArcSite free before you pick a plan, so you can draw a real fence job and see if it fits how your team works.
