Modular Home Floor Plan - Free Template

Template Library

Modular Home Floor Plan

A modular home gives a young family three bedrooms, two baths, and an open kitchen under one roof, plus a front porch for summer evenings. Adjust ArcSite's modular home floor plan to suit your buyer's lot and wish list.

Customize & Download

Opens right in your browser — no install. Make it yours within minutes.

Browse Related Templates

Key Features

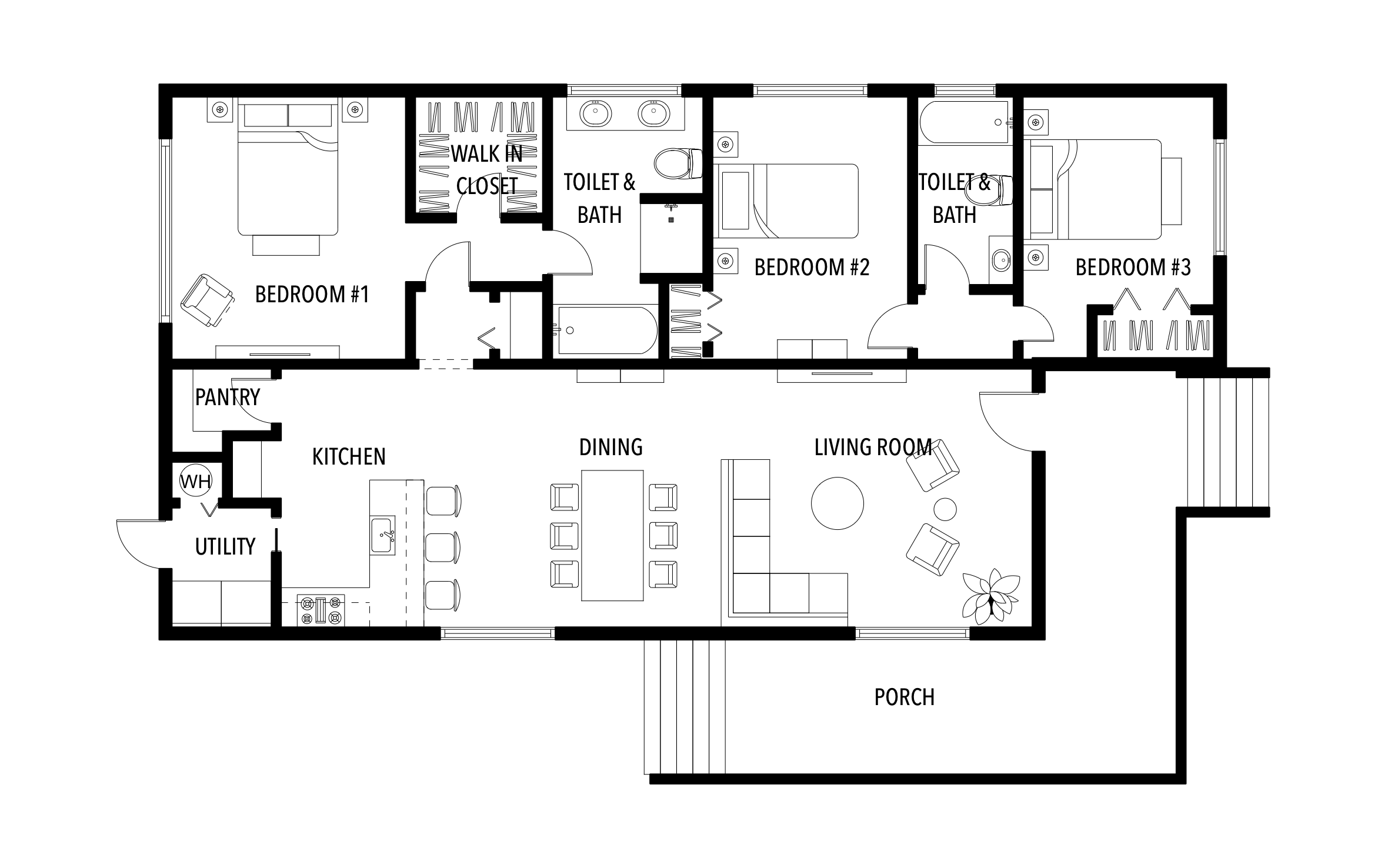

This modular home floor plan includes:

Three bedrooms along one side of the house
Walk-in closet off the first bedroom
Two toilet and bath rooms between the bedrooms
Open kitchen, dining, and living room
Kitchen island with three bar stools
Pantry and a utility room with a water heater
Front porch with steps on two sides

The utility room has its own exterior door next to the kitchen, so muddy boots and laundry stay out of the living room.

Accurate to scale

Design from anywhere

Professional results

Design tips

Key Considerations When Designing a Modular Home Floor Plan

Customize & Download

Because modular homes ship in sections, plans work best when walls, plumbing, and long rooms line up with section joints. ArcSite lets you shuffle rooms with your buyer until the layout fits their family and the factory's limits.
