UPS CAD Block
UPS CAD block free in DWG, DXF, and PNG. Back up any electrical plan on Windows, iOS, or Android.
Key Features

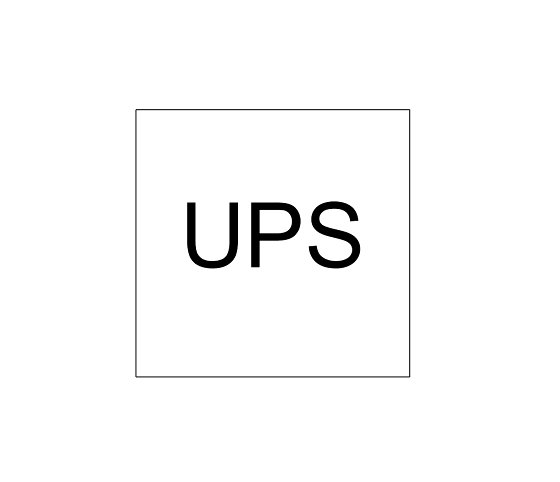

ArcSite's UPS CAD Block
True-to-Scale Dimensions: Designed to match typical UPS units, ensuring compatibility with electrical and architectural standards
Easy Integration: Insert into ArcSite drawings instantly, or export DWG/DXF formats for use in any standard designing software
Clean and Readable Linework: Built to match ArcSite’s drawing standards for clean plan sets
Compatibility with CAD software: The UPS CAD block can be viewed in most CAD software, including AutoCAD (2025 and earlier) and ArcSite
