Water Heater Expansion Tank Diagram

Water Heater Expansion Tank Diagram

A properly placed expansion tank keeps pressure spikes from dripping the relief valve and wearing out a water heater early. ArcSite's water heater expansion tank diagram shows where the tank goes and what it's protecting.

Customize & Download

Opens right in your browser — no install. Make it yours within minutes.

Browse Related Templates
Water Heater Expansion Tank Diagram

Key Features

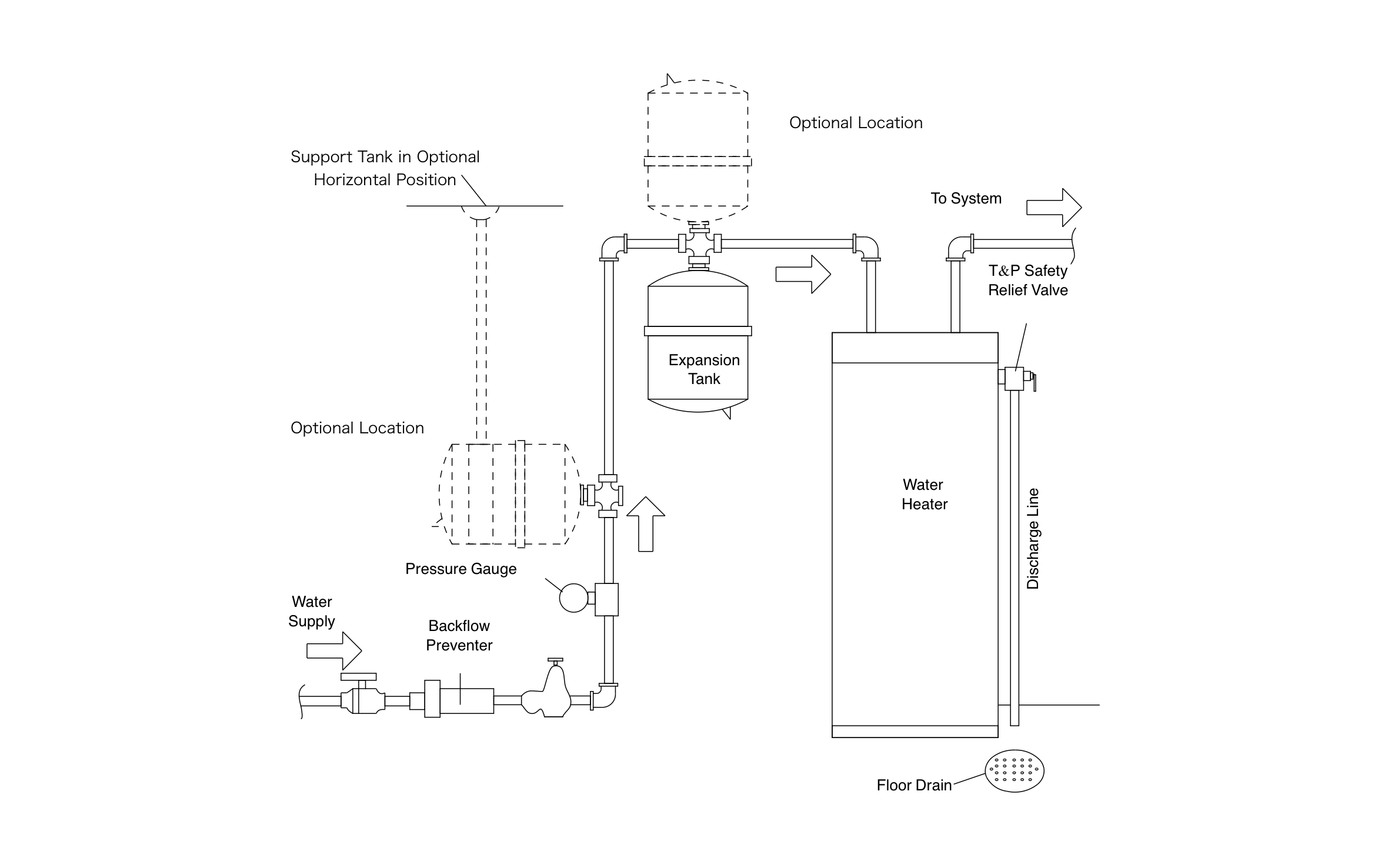

This water heater expansion tank diagram includes:

  • Expansion tank on the cold water supply line
  • Two optional tank locations, including a horizontal mount
  • Backflow preventer and shutoff valve on the incoming supply
  • Pressure gauge on the cold line
  • T&P relief valve with a discharge line
  • Floor drain below the discharge line
  • Flow arrows from supply to system

The backflow preventer is what makes this tank necessary: once it closes the house off from the main, heated water has nowhere to expand except into the tank.

Fully customizable

Industry specific

Professional & accurate designs

Design tips

Why Use a Water Heater Expansion Tank?

Many local codes require an expansion tank wherever a backflow preventer or check valve turns the plumbing into a closed system. ArcSite lets you mark the tank, valves, and discharge route on this diagram so an inspector sees your full setup on one page.

Trusted by Pros. Recognized by the Industry.

With top ratings across Software Advice, GetApp, and Capterra, professional contractors choose us for ease of use, powerful tools, and unmatched customer support.

GetApp logo with user reviews rating showing 4.7 stars out of 5 with four full and one half star.

Frequently asked questions

Can the expansion tank be mounted horizontally?

Can I move the tank to a different spot?

Do I need a computer to use ArcSite?
