What makes a 16x24 deck layout ideal for outdoor spaces?

The 16x24 size offers a balance between spaciousness and functionality, making it perfect for hosting events, dining, or simply relaxing outdoors.

Can this layout be modified for sloped yards?

Yes, the design can be customized to include adjustable posts or beams to accommodate uneven terrain.

Is ArcSite free to use?

ArcSite offers a free 14-day trial, allowing you to explore its full range of features and templates. After the trial, you can choose a subscription plan that fits your needs.

16x24 Deck Layout - Free Template Download!

Template Library

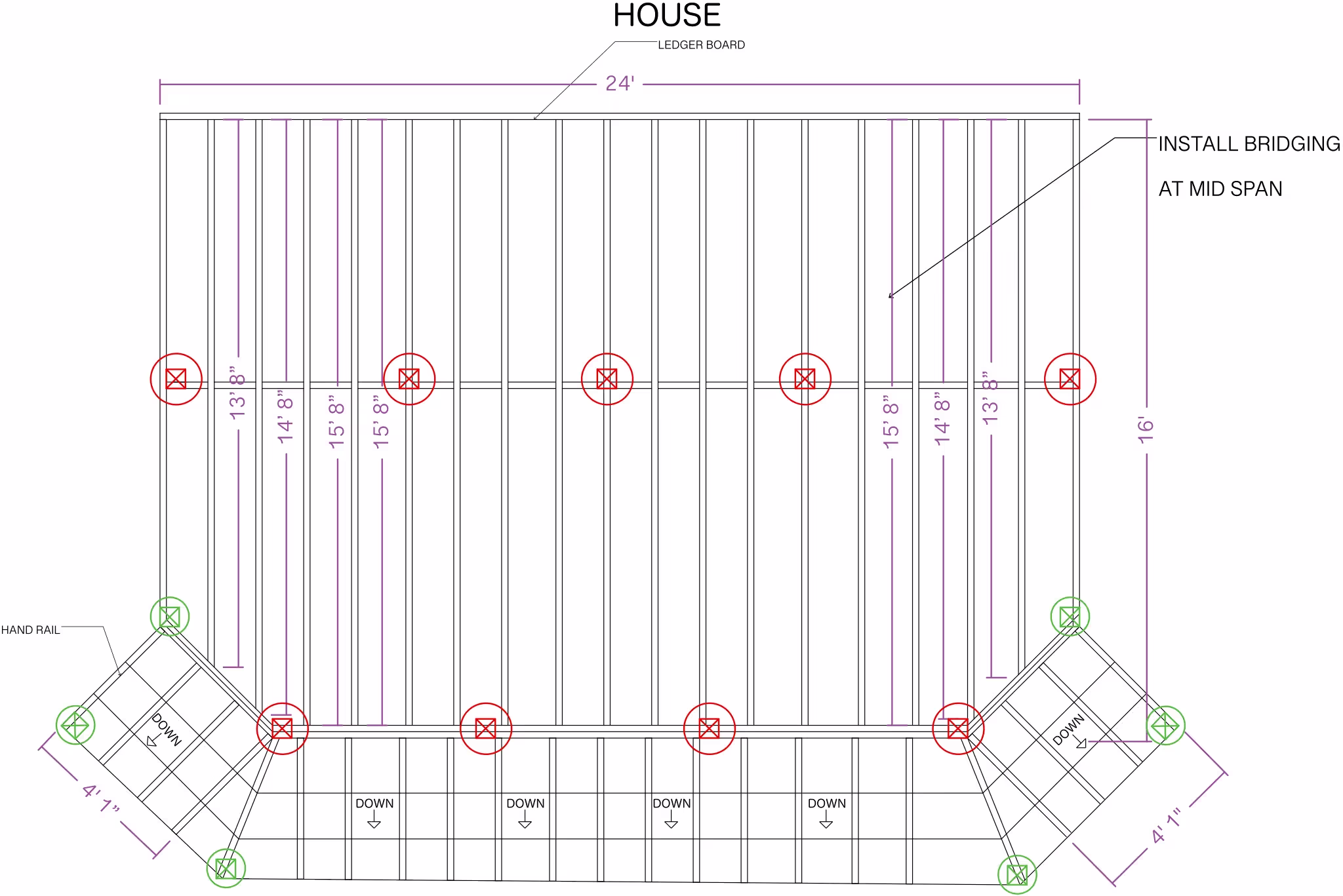

16x24 Deck Layout

A 16x24 deck gives you enough room for a full dining and lounge setup with space left over for a pergola or built-in bench. ArcSite's 16x24 deck layout template lays out that framing for you, ready to adjust to your own footings and posts.

Customize & Download

Opens right in your browser — no install. Make it yours within minutes.

Browse Related Templates

Key Features

This 16x24 deck layout includes

2x8 joists spaced 16 inches on-center
4x4 support post locations
Ledger board attachment to the house
Mid-span bridging for long joist runs
Open steps with optional handrails

Mid-span bridging is called out separately from the joist layout, worth keeping in mind since it's easy to skip on a deck this size if you're framing from a smaller plan by memory.

Accurate to scale

Design from anywhere

Professional results

Design tips

Key Considerations When Designing a 16x24 Deck

Customize & Download

Mid-span bridging matters more on a deck this size than a smaller one, since the longer joist spans need extra reinforcement to keep the frame from flexing. In ArcSite, you can adjust this 16x24 deck layout's joist spacing and bridging to match your own span and local code.
