Pendant lights CAD blocks free in DWG, DXF, PNG, and PDF. Includes a tapered drum pendant, a row of three cone pendants, and a glass pendant.

Customize & Download

Opens right in your browser — no install. Make it yours within minutes.

Browse Related Blocks
Pendant Lights CAD Blocks

Key Features

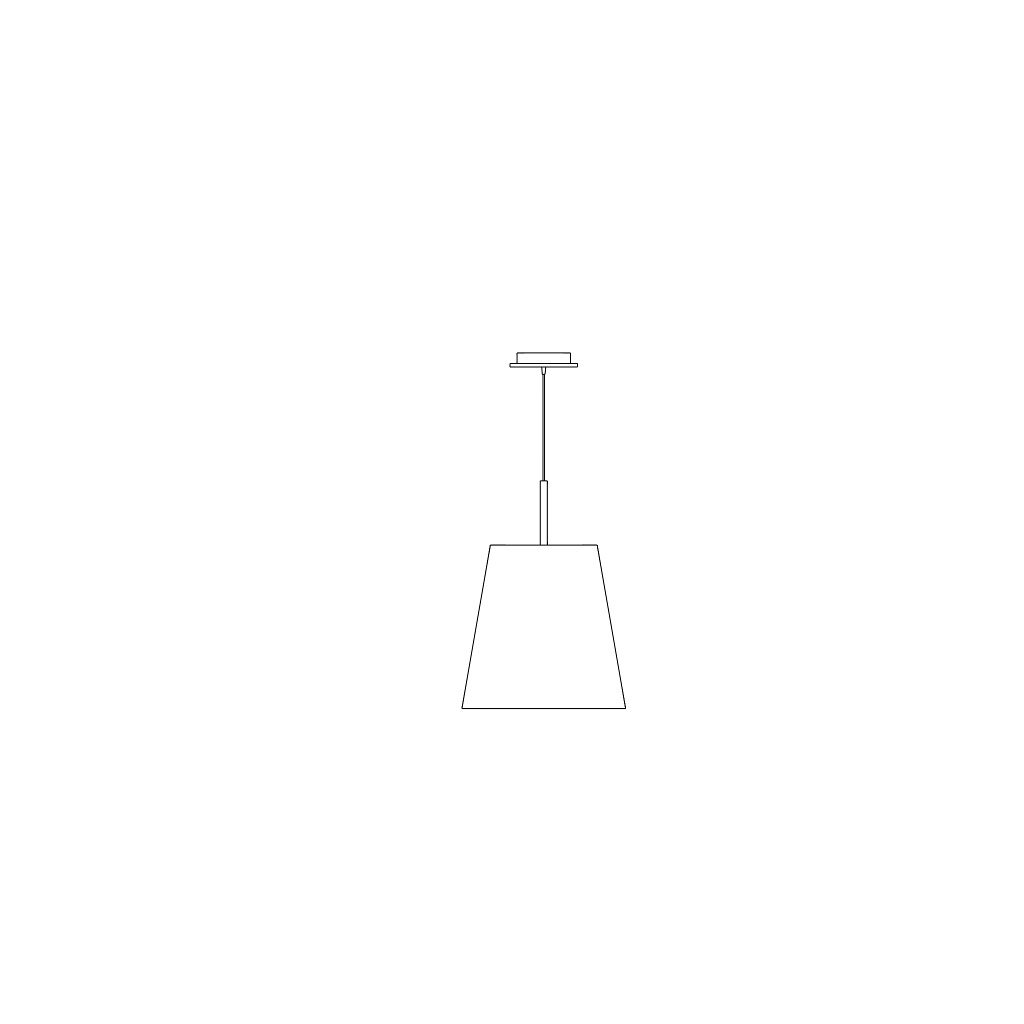

  • Drum Shade Pendant: A single tapered shade on a rod, sized for a dining table.
  • Three Cone Pendants: A row of three for hanging over a kitchen island or bar.
  • Glass Pendant: A slim glass shade on a long cord for tight spaces.
  • Drop Height on Elevations: Each light shows its cord or rod, so you can set how far it hangs.
