Fire Hydrant CAD Block
Fire hydrant CAD block free in DWG, DXF, PNG, and PDF. Use the black outline or red plan symbol on a site plan, and the red side view on an elevation.
Key Features
- Plan Outline: A black-line top view with the outlets on each side for site plans.
- Red Plan Symbol: A filled red top view stands out on busy civil sheets.

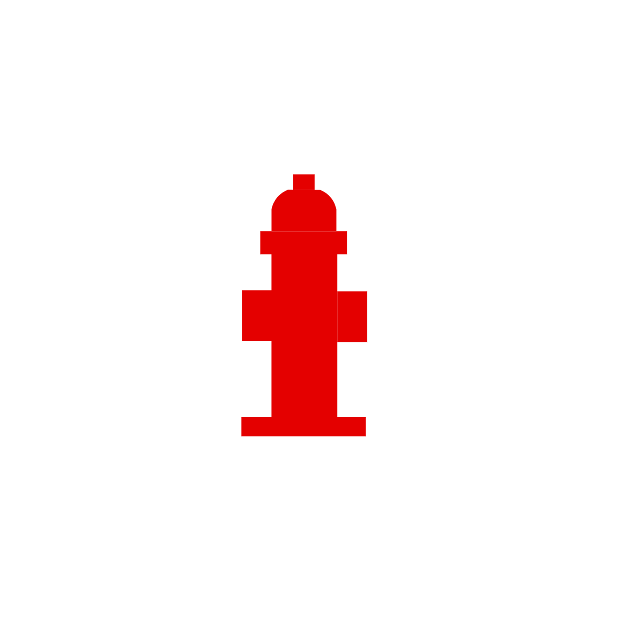

- Side Elevation: Shows the barrel, bonnet, and outlets for street views.
- Site Work Drawings: Marks hydrant spots along curbs and drive lanes.
Industry specific
Professional & accurate designs
Ready made to share or export
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Frequently asked questions
Which view should I use on a site plan?
One of the two top views. The side view goes on elevations.
Can I use it to show the distance from a hydrant to a building?
Yes. Place the plan view, then draw a dimension line to the nearest wall.
What formats is it available in?
DWG, DXF, PNG, and PDF.
