Fire Extinguisher CAD Block
Fire extinguisher CAD block free in DWG, DXF, PNG, and PDF. A red cylinder with a label panel and the hose hanging off the valve.
Key Features
ArcSite's Fire Extinguisher CAD Block

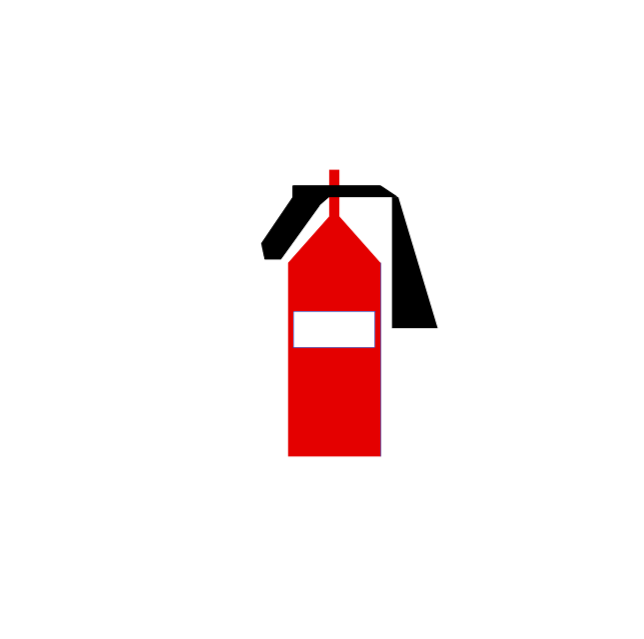

- Side View: Shows the extinguisher standing upright, as it looks mounted on a wall.
- Hose and Handle: The black hose and handle hang off the top valve.
- Label Panel: A white band on the red body leaves room for the type or class.
- Wall Mount Spots: Marks each extinguisher along halls, kitchens, and shops.
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Trusted by the Pros. Honored for Innovation.
Based on 21,000+ reviews from
Life Safety & Fire Protection
CAD blocks you might like
FAQs
Does it include the hose?
Yes. The hose runs from the valve down the right side.
Can I write the extinguisher class on it?
Yes. Add a text label in the white band on the body.
What formats is it available in?
DWG, DXF, PNG, and PDF.
