Bathroom Drain Vent Layout

Designing bathroom plumbing doesn’t have to be complicated. A properly drawn drain vent layout ensures every fixture flows correctly, venting works as intended, and you stay code-compliant. With ArcSite, you can lay out pipes, label vents and drains, and generate professional plumbing diagrams that are ready for permits and crews alike.

Based on 5,000+ reviews from

Key Considerations When Designing a Bathroom Drain Vent Layout

A successful layout balances gravity flow, venting, and spacing. Each fixture needs a vent connection to prevent siphoning and ensure drainage works reliably. Cleanouts must be accessible, and all components must align with building codes. ArcSite lets you visualize the system with real-time edits, so nothing is left to guesswork.

How Should I Structure My Drain and Vent System?

Group Fixtures by Location

Connect your toilet, sink, and tub to a common drain where possible, but ensure each has proper venting. Grouping minimizes material waste and simplifies pipe runs.

Use Proper Venting

A vent must rise above flood level before tying into the main stack. In this layout, all fixtures share a main vertical vent with individual branch vents as required.

Include Maintenance Access

A cleanout near the main stack ensures the system can be serviced if needed. ArcSite makes it easy to visualize cleanout locations and share them with your crew.

Overview

Features of ArcSite’s Bathroom Drain Vent Layout Template

Complete Fixture Coverage

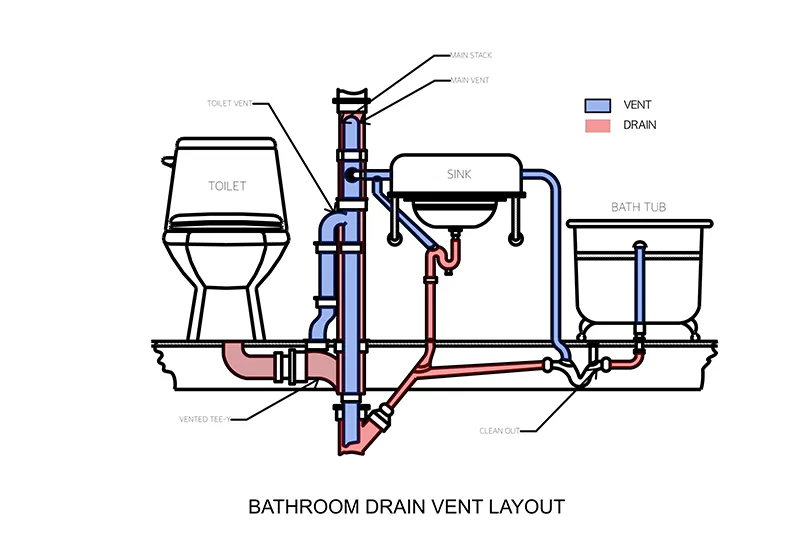

  • Includes toilet, sink, and bathtub—each with appropriate drain and vent connections.
  • Pipes are color-coded for clarity: red for drain and blue for vent lines.
  • Each component is shown in context with structural elements like flooring and walls.

Proper Venting and Flow Paths
  • The toilet vent connects into the main stack to prevent pressure buildup.
  • The sink and bathtub share a dedicated vent, ensuring smooth water flow.
  • A vented tee-wye configuration minimizes clogs and backups in the system.

Code-Conscious Design
  • A main stack and main vent are clearly identified, ensuring proper vertical air flow.
  • Cleanouts are shown for easy maintenance access.
  • The diagram is ready for local plumbing code checks and inspections.
