Furnishing an apartment gets easier once you know exactly how much square footage each room actually has to work with. ArcSite's apartment layout template lays out living, dining, and sleeping zones with real proportions before you buy a single piece of furniture.

Customize & Download

Opens right in your browser — no install. Make it yours within minutes.

Browse Related Templates
Apartment Layout

Key Features

This apartment layout includes:

  • A 120 sq ft living room sized for seating and an entertainment setup

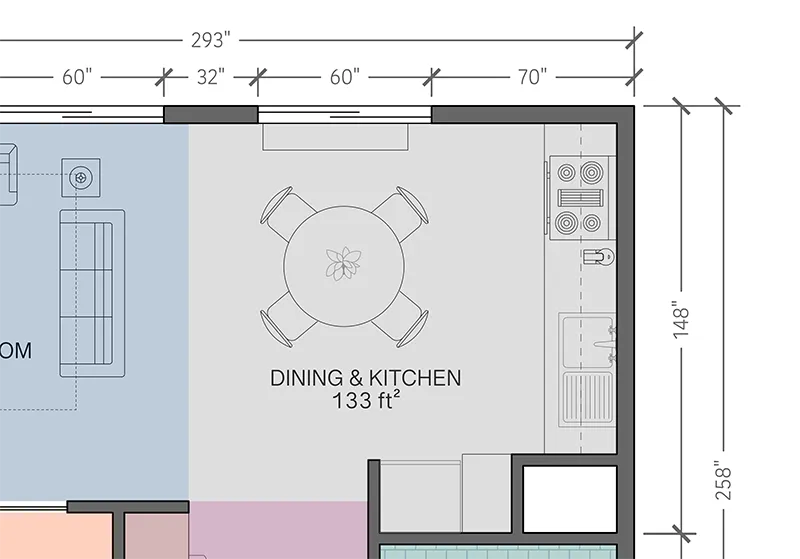

  • A combined 133 sq ft dining and kitchen area

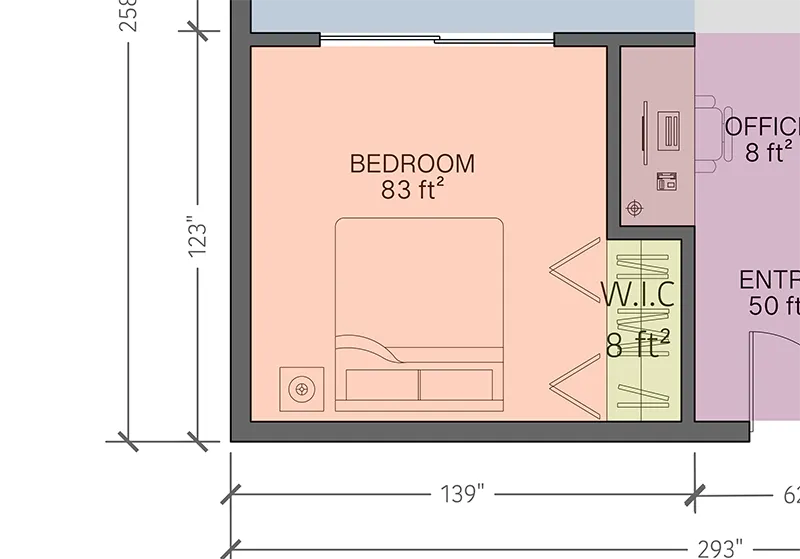

  • An 83 sq ft bedroom with a walk-in closet
  • An 8 sq ft home office nook for remote work or study
  • A 57 sq ft full bathroom with bath and vanity
  • A 50 sq ft entry area separating the front door from the living zone

The entry area is boxed off from the living room instead of opening straight into it, which keeps foot traffic from cutting through the main seating zone.

Accurate to scale

Design from anywhere

Professional results

Design tips

Key Considerations When Designing an Apartment Layout

A strong apartment layout balances private and shared space while making the most of a limited footprint, with attention to natural light, furniture fit, and how people move through the unit. In ArcSite, you can define zones for living, dining, sleeping, and working, and adjust them until the flow actually works.
