Washer CAD Block
Washer CAD block free in DWG, DXF, PNG, and PDF. Pick the detailed drum version or the plain-door version for your elevation.
Key Features

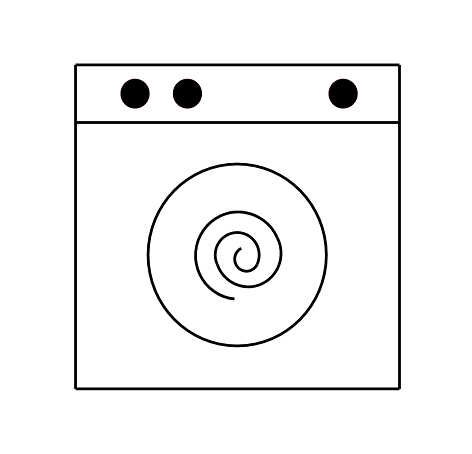

- Drum Shown: One washer shows the swirling drum and three control knobs.
- Plain Door Version: A second washer with a square door for simpler drawings.
- Laundry Room Elevations: Set the washer under a shelf or folding counter on the wall view.
- Room for a Dryer: Leave space beside it if a dryer goes in later.
Accurate to scale
Fully customizable
Professional results
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Frequently asked questions
Is it a front-load or top-load washer?
Front-load, drawn from the front.
Can I show where the water and drain hook up?
Yes, place it on the plumbing wall and note the hookup box behind it.
What formats is it available in?
DWG, DXF, PNG, and PDF.
