Electric Range CAD Block

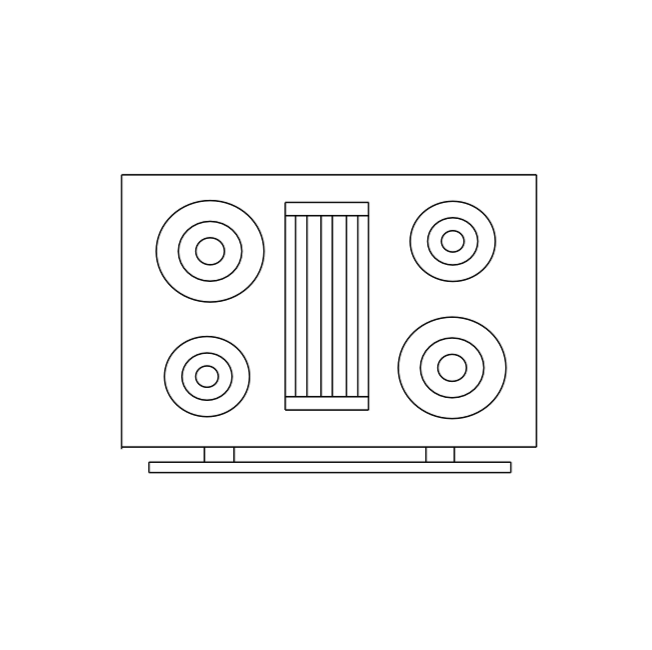

Electric range CAD block free in DWG, DXF, PNG, and PDF. Four burners, two large and two small, sit around a center strip.
Key Features
- Top View Cooktop: Shows the range from above, the way it reads on a kitchen floor plan.
- Four Burner Layout: Two large and two small burners mark where the cook zones sit.
- Center Strip: A divided strip runs down the middle of the top, between the burners.
- Counter Run Placement: Drop it into a counter run to check spacing to the sink and fridge.
Accurate to scale
Fully customizable
Professional results
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Frequently asked questions
What view does it show?
The top view, with all four burners and the center strip.
Can I use it to plan clearance to the counters on each side?
Yes. The outline gives the range's footprint, so you can set the gap to the counters next to it.
What formats is it available in?
DWG, DXF, PNG, and PDF.
