Air Conditioner CAD Block
Air conditioner CAD block free in DWG, DXF, and PNG. A labeled rectangle marks the unit's footprint on the plan.
Key Features
ArcSite's Air Conditioner CAD Block

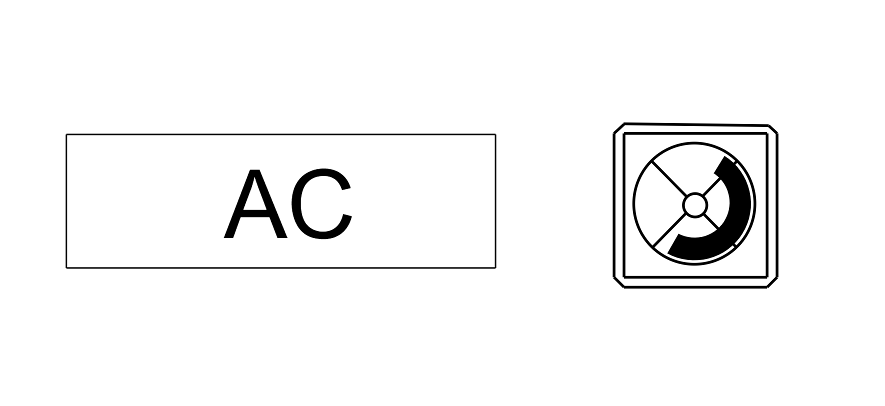

- Labeled Unit Symbol: A rectangle tagged "AC" shows exactly where the unit sits on the plan.
- Footprint You Can Resize: Stretch the rectangle to match the actual unit before you set clearances.
- HVAC Plan Ready: Place it alongside ducts, condensers, and diffusers on a mechanical layout.
- CAD Software Compatibility: Open the DWG or DXF file in AutoCAD or any standard CAD program.
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Trusted by the Pros. Honored for Innovation.
Based on 21,000+ reviews from
HVAC & Mechanical
CAD blocks you might like
Unlock 1,200+ free CAD blocks with ArcSite
Drag and drop from thousands of preloaded shapes, edit blocks on-site, and generate instant estimates and takeoffs.
FAQs
What does the block show?
A plan view rectangle labeled "AC" that represents the unit's footprint.
Can I resize it to match a specific unit?
Yes, scale the rectangle to the manufacturer's listed dimensions so clearances on the plan stay accurate.
What formats is it available in?
DWG, DXF, and PNG.
