Piano CAD Block
Piano CAD block free in DWG, DXF, PNG, and PDF. The curved case and full keyboard show which way the player sits.
Key Features

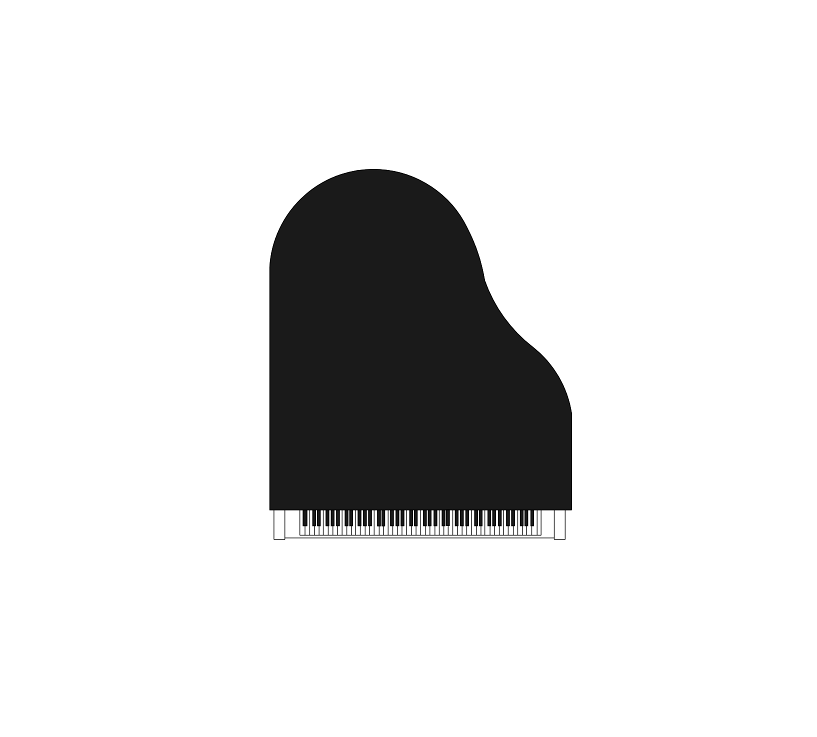

- Grand Piano Footprint: The block shows the curved case from above, so its full size is on the plan.
- Keyboard Shown: The keys mark the front edge, which tells you where the bench goes.
- Room Clearance: Place it on the plan to check walkways around the curve of the case.
- Venue and Home Layouts: Works for living rooms, churches, schools, and event spaces.
Accurate to scale
Fully customizable
Ready made to share or export
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Frequently asked questions
Is it an upright or a grand piano?
A grand piano, drawn in plan view.
Should I leave room for a bench?
Yes, leave space in front of the keyboard for the bench and the player.
What formats is it available in?
DWG, DXF, PNG, and PDF.
