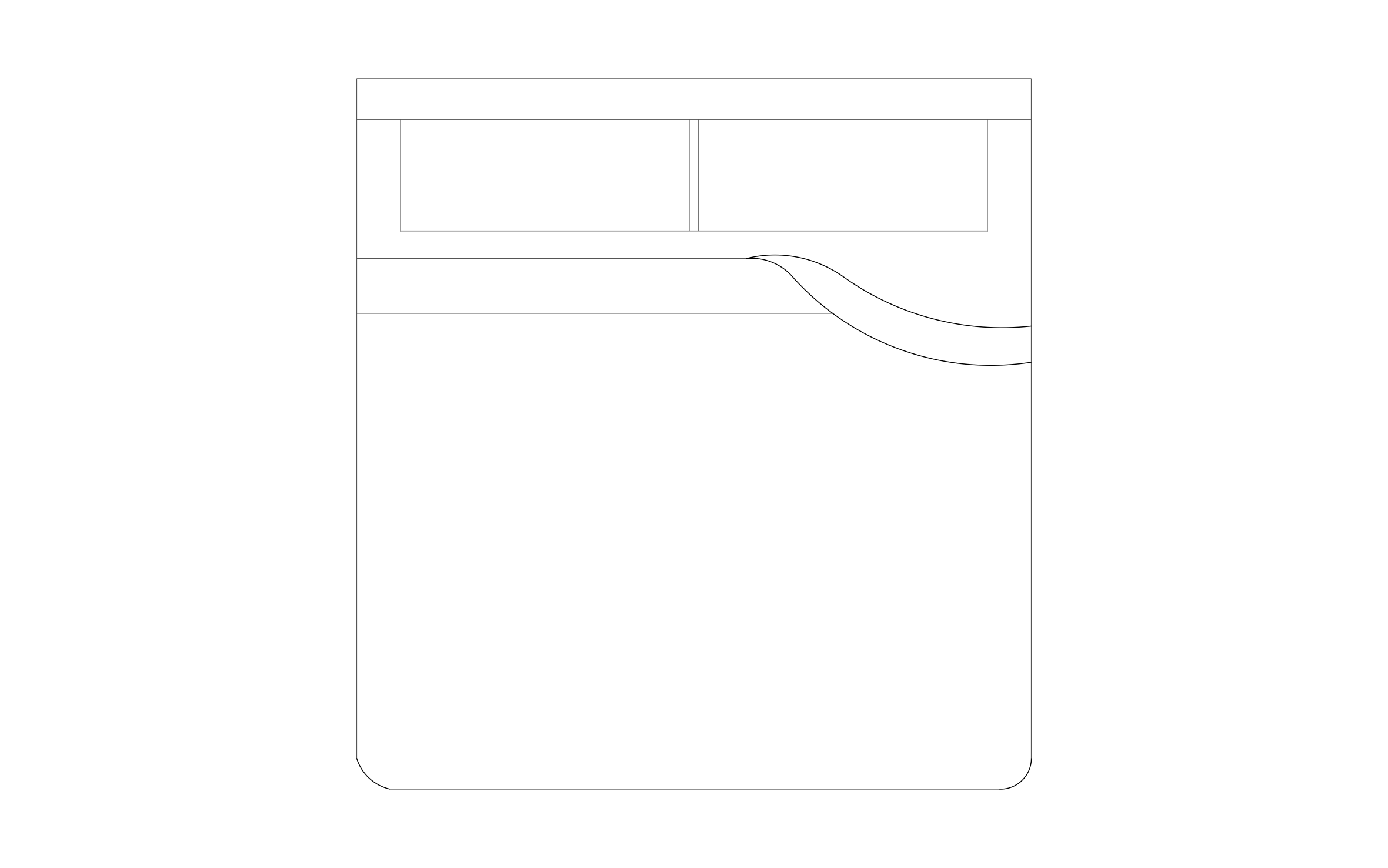

King Bed CAD Block
King bed CAD block free in DWG, DXF, and PNG. Six foot four wide. See if the room really takes it.
Key Features
ArcSite's King Bed CAD Block
True-to-Scale Dimensions: Drawn at true 76 x 80 inch king mattress dimensions
Easy Integration: Insert into ArcSite drawings instantly, or export DWG/DXF for use in any standard design software
Clean and Readable Linework: Built to ArcSite's drawing standards for clean plan sets
Swappable: Place the queen block on the same plan to compare walkway clearances
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Trusted by the Pros. Honored for Innovation.
Unlock 1,200+ free CAD blocks with the ArcSite app
FAQs
It's drawn to true 76 x 80 inch king mattress dimensions, so it drops straight into a scaled plan without resizing.
DWG, DXF, and PNG, so it works in ArcSite or any standard CAD software.
Yes, place the queen bed CAD block on the same layout to check walkway clearances before finalizing the room.
