Curved Stairs - Elevation CAD Block

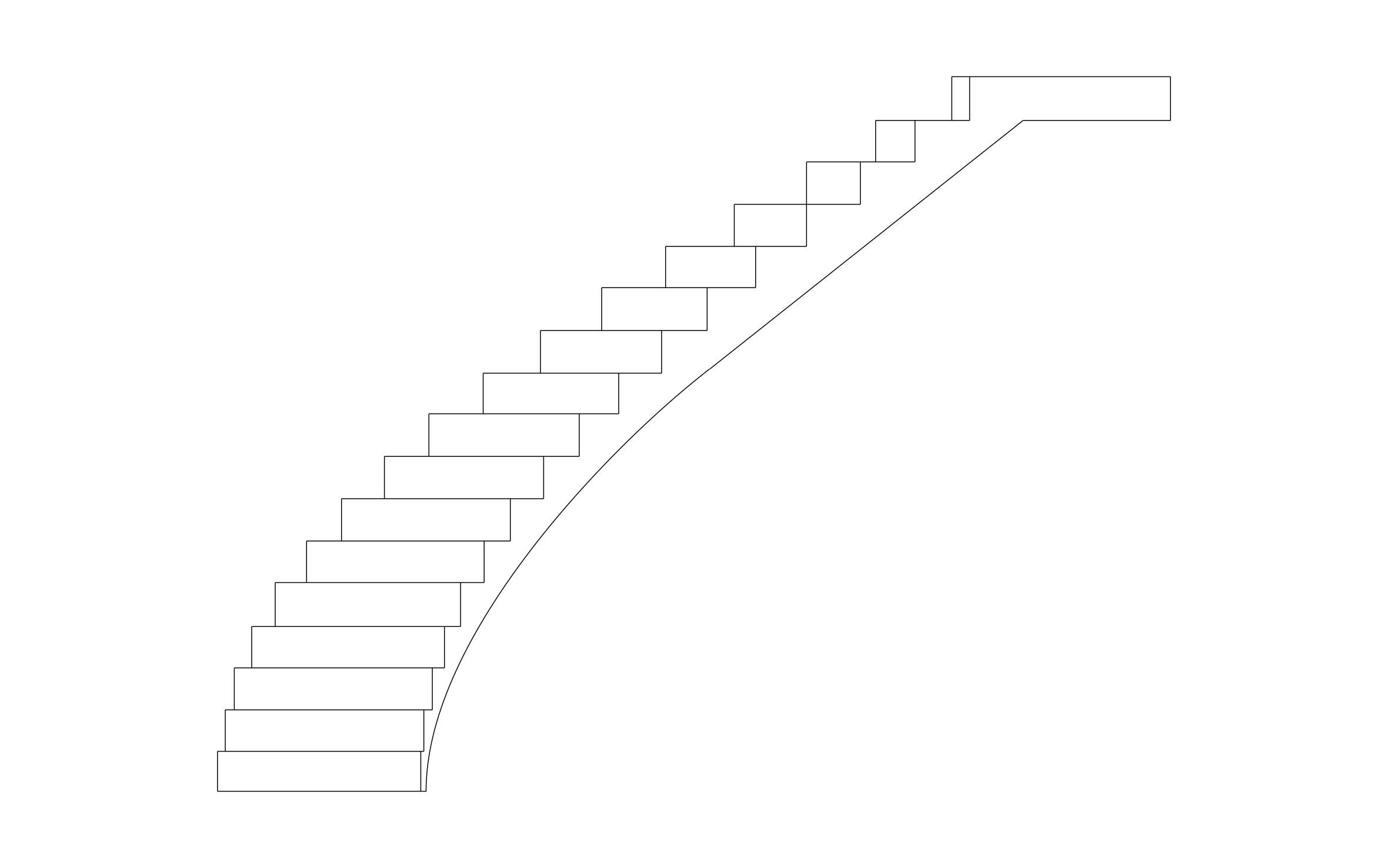

Curved stairs elevation CAD block free in DWG, DXF, and PNG. Shows the rise of each tread along the curve, from the bottom step to the top landing.
Key Features
ArcSite's Curved Stairs - Elevation CAD Block
- Side-View Stair Profile: Shows the rise of a curved staircase, step by step, from base to landing.
- Pairs With the Plan Block: Built to match the Curved Stairs plan-view block for the same run.
- True-to-Scale Rise: Tread heights follow standard stair proportions, so the profile scales correctly against wall and floor heights.
- Easy Integration: Insert into ArcSite drawings instantly, or export DWG/DXF formats for use in any standard designing software.
- Compatibility with CAD software: The curved stairs elevation CAD block can be viewed in most CAD software, including AutoCAD and ArcSite.
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Trusted by the Pros. Honored for Innovation.
Based on 21,000+ reviews from
Architectural Elements & Site Features
CAD blocks you might like
Unlock 1,200+ free CAD blocks with ArcSite
Drag and drop from thousands of preloaded shapes, edit blocks on-site, and generate instant estimates and takeoffs.
FAQs
What view does it show?
An elevation, or side-on view, of the stair run.
Should I pair it with the plan-view block?
Yes, use it alongside the Curved Stairs plan block to show the same run from both angles.
What formats is it available in?
DWG, DXF, and PNG.
