Computer Lab CAD Blocks

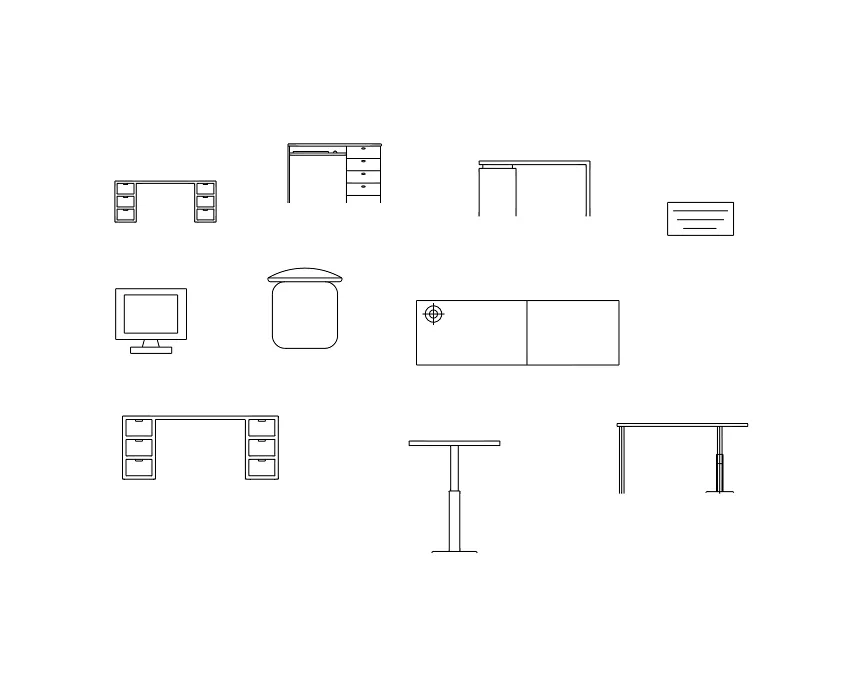

Computer lab CAD blocks free in DWG, DXF, PNG, and PDF. The set mixes plan view workstations with front view desks, adjustable tables, and a whiteboard.
Key Features
ArcSite's Computer Lab CAD Blocks
- Workstation Plans: Monitor and keyboard layouts, one shown on a desktop, map each seat from above.
- Desk Styles: Single and double pedestal desks with drawers cover teacher and staff stations.
- Adjustable Tables: Sit-stand desks and a single-post table show height-adjustable options in front view.
- Cable Grommet Desk: A plan view desk with a marked cable hole shows where power and data come up.
- Whiteboard: A wall board with writing lines finishes the front of the room.
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Trusted by the Pros. Honored for Innovation.
Based on 21,000+ reviews from
Furniture & Interior Design
CAD blocks you might like
FAQs
What's included in the set?
Desks, workstation layouts, a chair, adjustable tables, a monitor, and a whiteboard, in plan and front views.
Can I use it to plan power and data runs?
Yes, the grommet desk marks where cables come through, so you can line up floor boxes and outlets under each station.
What formats are they available in?
DWG, DXF, PNG, and PDF.
