Closet CAD Block

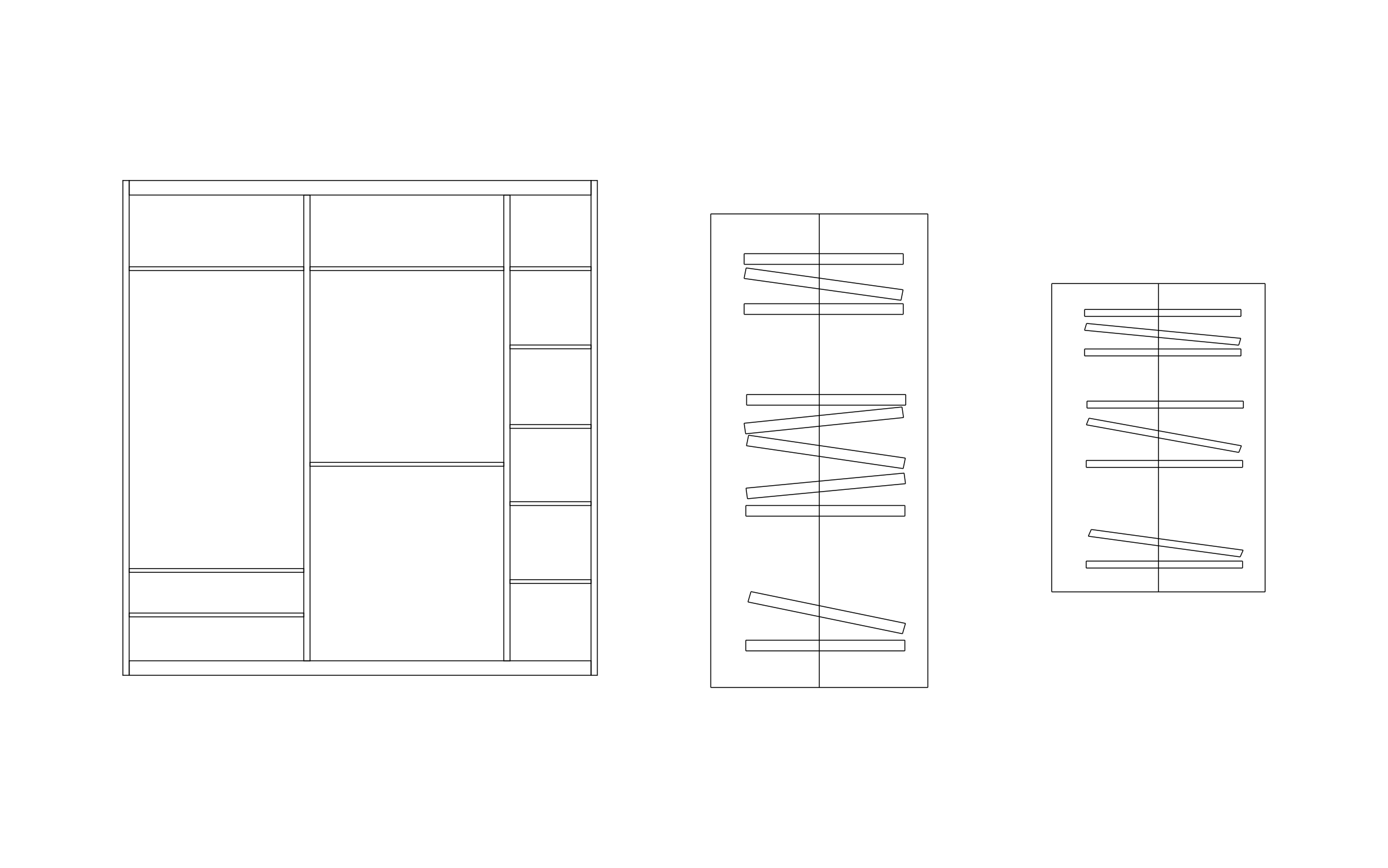

Closet CAD block free in DWG, DXF, and PNG. Show the shelving and the swing, not just a rectangle on the wall.
Key Features
ArcSite's Closet CAD Block
True-to-Scale Dimensions: Drawn to standard closet depths for reach-in and walk-in layouts
Easy Integration: Insert into ArcSite drawings instantly, or export DWG/DXF for use in any standard design software
Clean and Readable Linework: Built to ArcSite's drawing standards for clean plan sets
Shelving Included: Rod runs and shelving read on the plan, not just the outline
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Trusted by the Pros. Honored for Innovation.
Based on 21,000+ reviews from
Unlock 1,200+ free CAD blocks with the ArcSite app
Drag and drop from thousands of preloaded shapes, edit blocks on-site, and generate instant estimates and takeoffs.
FAQs
Does it show shelving, not just an outline?
Yes, rod runs and shelving read on the plan, not just a rectangle on the wall.
Does it cover both reach-in and walk-in closets?
Yes, drawn to standard closet depths for both layouts.
What file formats does it come in?
DWG, DXF, and PNG.
