Cafeteria CAD Block

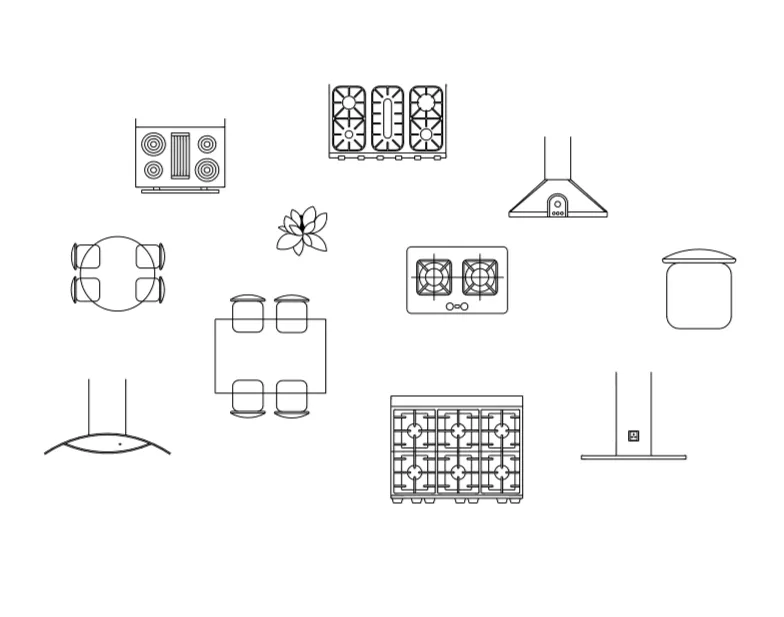

Cafeteria CAD block free in DWG, DXF, and PNG. Includes three range hood styles in front view alongside plan view ranges and tables.
Key Features
ArcSite's Cafeteria CAD Block
- Commercial Ranges: Two-, four-, five-, and six-burner cooktops cover the cook line.
- Range Hoods: Wall chimney, pyramid, and curved island hoods show ventilation over the cooking area.
- Dining Tables: Rectangular and round four-top tables set up the dining hall.
- Extra Chair: A loose chair lets you add seats at counters or table ends.
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Trusted by the Pros. Honored for Innovation.
Based on 21,000+ reviews from
Commercial Kitchen & Hospitality
CAD blocks you might like
Unlock 1,200+ free CAD blocks with ArcSite
Drag and drop from thousands of preloaded shapes, edit blocks on-site, and generate instant estimates and takeoffs.
FAQs
Which cooking equipment is included?
Cooktops with two, four, five, and six burners, plus three range hoods.
Should I place the hoods directly over the ranges?
Yes, line each hood up over its range on the elevation so ventilation coverage is clear.
What formats is it available in?
DWG, DXF, and PNG.
