ADA Sink CAD Block
ADA sink CAD block free in DWG, DXF, and PNG. Show the knee clearance and the approach on the plan, not in an email.
Key Features
ArcSite's ADA Sink CAD Block

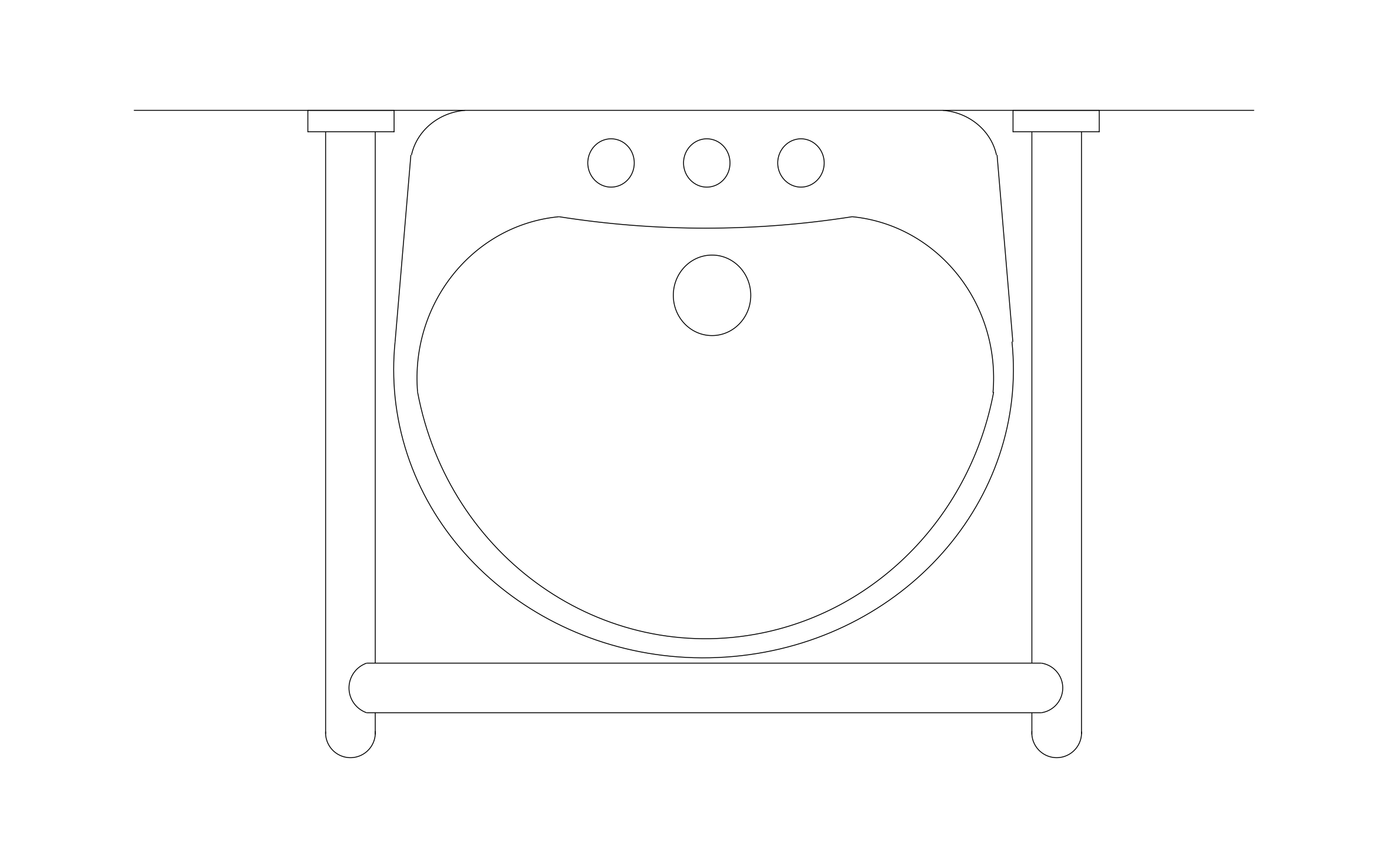

True-to-Scale Dimensions: Drawn to accessible lavatory dimensions with knee clearance in mind
Easy Integration: Insert into ArcSite drawings instantly, or export DWG/DXF for use in any standard design software
Clean and Readable Linework: Built to ArcSite's drawing standards for clean plan sets
Compliance Ready: Shows the fixture and the approach so the plan reviewer sees both
Unlock 1,200+ Free CAD blocks with the ArcSite app
CAD blocks. Floor plans. Estimates. Do it all with ArcSite's mobile app.
Free access to over +1,200 blocks included with the ArcSite CAD app
Trusted by the Pros. Honored for Innovation.
Unlock 1,200+ free CAD blocks with the ArcSite app
FAQs
Yes, it's drawn to accessible lavatory dimensions with the required knee clearance built in.
Yes, it includes both the fixture and the approach so a plan reviewer can check compliance without extra back-and-forth.
DWG, DXF, and PNG, so it drops into ArcSite or exports to any standard CAD software.
